Python GPIO module problem on Raspberry Pi 2

Reading Time: < 1 minute

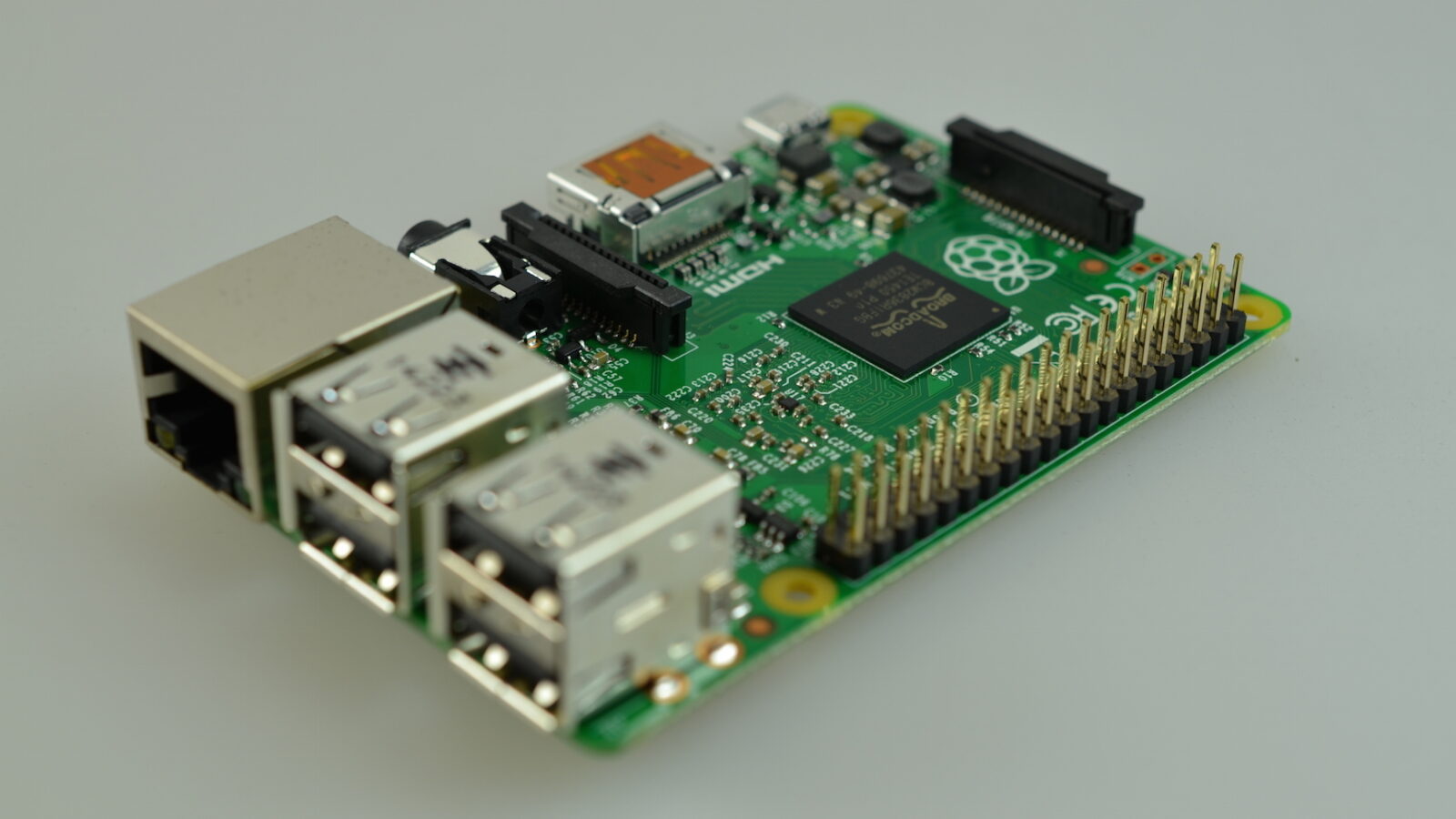

Last monday the Raspberry Pi 2 was released. I’ve got one of them on Tuesday. After the installation of the new Raspbian Image (2015-01-31) i realized that the default GPIO Python module of Raspian does not work with the Raspberry Pi 2 anymore. I tried to import the module and got a „This module can only be run on a Raspberry Pi!“ message.

There is already a ticket for this issue at Sourceforge.  The sources are fixed but there is no raspbian upgrade until now. You can easily upgrade the module by compiling from source.

First install the needed packages.

$ sudo apt-get install python-dev python3-dev
$ sudo apt-get install mercurial
$ sudo apt-get install python-pip python3-pip

Remove the old packages.

$ sudo apt-get remove python-rpi.gpio python3-rpi.gpio

Install the new Versions

$ sudo pip install hg+https://hg.code.sf.net/p/raspberry-gpio-python/code#egg=RPi.GPIO
$ sudo pip-3.2 install hg+https://hg.code.sf.net/p/raspberry-gpio-python/code#egg=RPi.GPIO

After the installation is complete, you can try the module by starting python.

python

In Python test the installation by importing the module.

import RPi.GPIO

If you get no errors, the module will work.

Have fun!

For more detailed instructions visit:
https://sourceforge.net/p/raspberry-gpio-python/wiki/install/

Edit: Thanks to Ben Croston for the hint in the comments. I changed the instructions above. They match Ben’s suggested way of installation for the development version now.



5 Gedanken zu “Python GPIO module problem on Raspberry Pi 2

  1. Ben Croston

    This is the wrong way of doing it. You are better folliwing the install instructions for the development version here:
    https://sourceforge.net/p/raspberry-gpio-python/wiki/install/

    • Hi Ben,
      thank you for the hint. I just edited the post. You are right the first post was a (ugly) quick and dirty way.
      regards
      Mario

  2. Thanks, i ust ran into the same issues. This fix works fine!

  3. Zainoz Zaini

    Thanks for sharing
